- Samples date :1-7days,Free with freight collect
- Delivery date :10-15 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box,User-Defined
- Shipping :By Sea,By Air,By FedEx
- Payment :Wire transfer
American Power Cord, Type A, UL certified 2 pins NEMA 1-15P Plug, Non-rewirable Without Earthing Contact, Moulded. Fully conforms to the NEMA 1-15P CSA CAN/CSA-22.2 No.21-95 plug standards and RoHS, REACH and PAHS compliant.

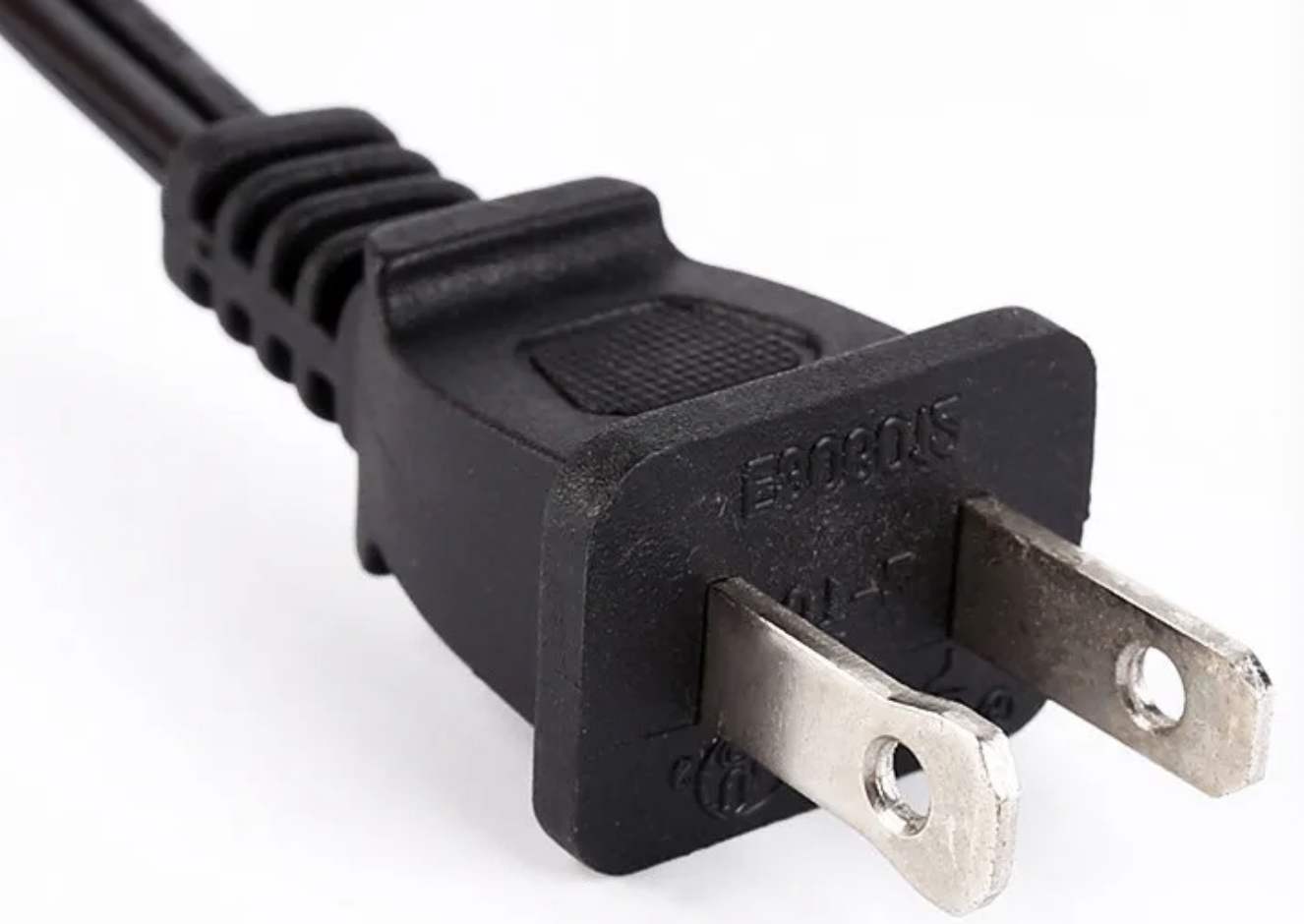

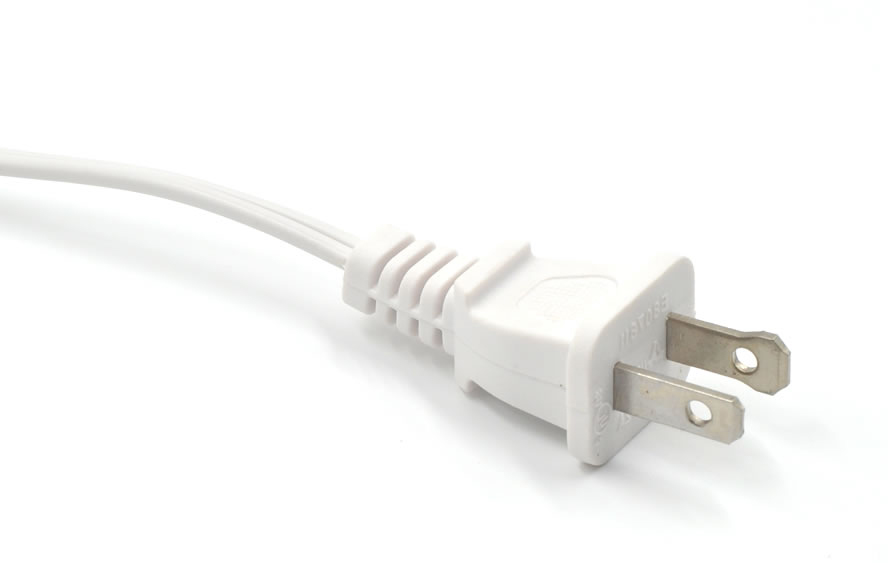

USA two prong power cord plug with UL and CUL CSA certification. Built to NEMA 1-15P standards. Rated up to 15A 125V, 13A 125V or 10A 125V.

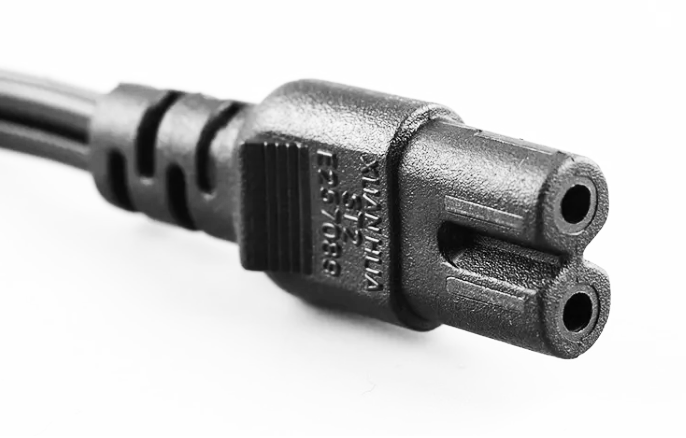

1-15P America two prong power cord plug with UL/CSA certification Rated up to 7A,15A 125V Built to North America NEMA 1-15 standard and designed for 2 prong America power cord applications,With IEC C7 is normal power cable, All of Our America UL CSA power cord products are fully molded with high quality and RoHS / REACH compliant.

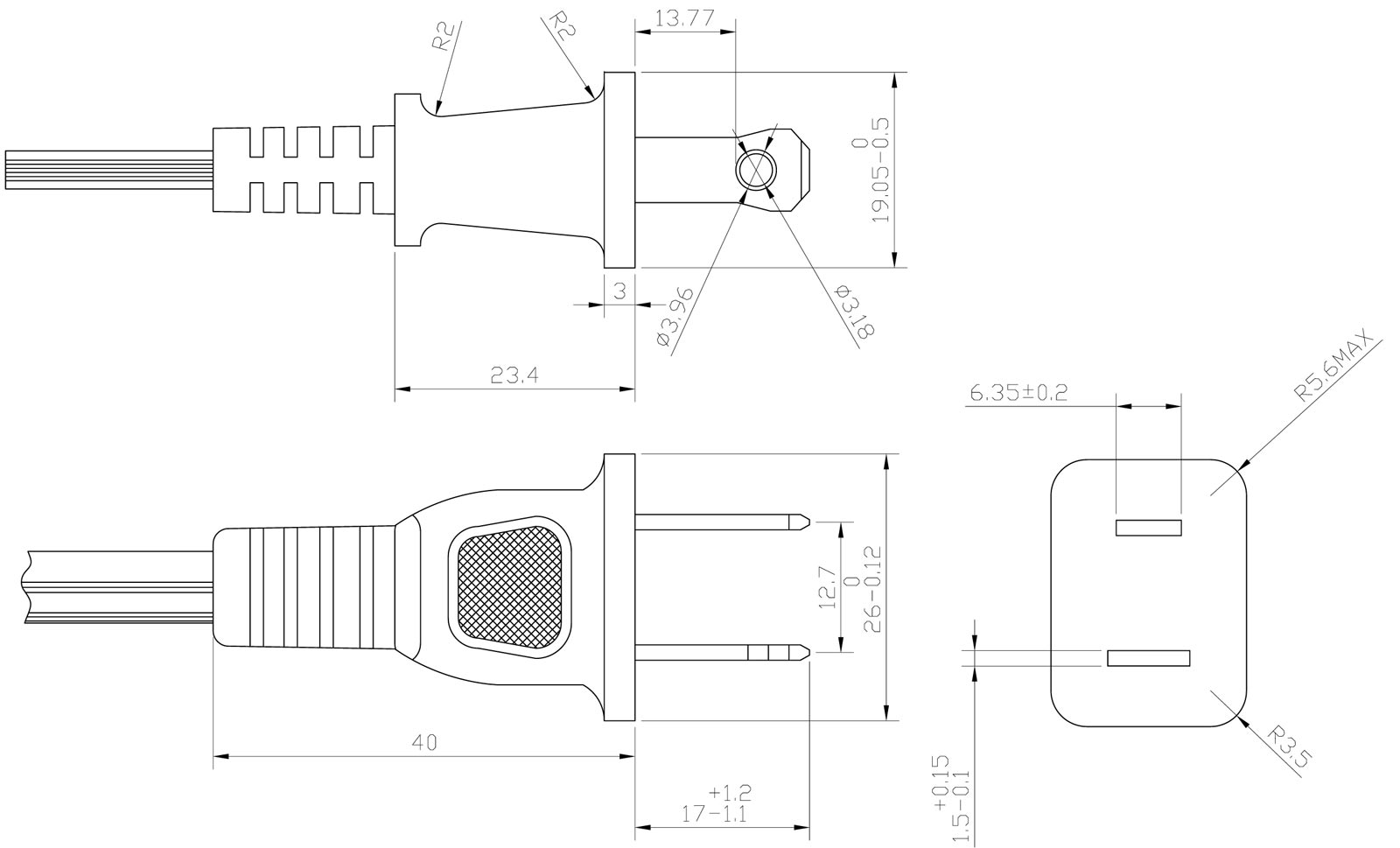

American UL Power Cords NEMA 1-15P Drawing (RoHS COMPLIANT)
NEMA1-15P/UL/CUL/NEMA 1-15P CSA CAN/CSA-22.2 No.21-95 (NINGBO NINGYANG)
American UL Power Cords NEMA 1-15P End Drawing (RoHS COMPLIANT)
NEMA1-15P/UL/CUL/NEMA 1-15P CSA CAN/CSA-22.2 No.21-95 (NINGBO NINGYANG)
- (Model)： NEMA1-15P
- (Voltage): 125V
- (Amperage): 10A 12A 13A
- (Temperature Rating): 60°C 105°C
- (Weight): 20g
- (Color): Black is standard but any color available
- (Cable Length): 6ft/User-defined
- (Plug Models Desc): Type 2P
- (Plug Material): Nickel Coated Brass & PBT
- (Cable Conductor Structure): 2 Poles 2 Wires
- (Cable Insulating Sheath Material): PVC, Rubber, Halogen-Free, Textile braid
- (Cable Conductor Material): Oxygen free copper (OFCU)
- (Approvals): UL/CUL
- (Standard): NEMA 1-15P CSA CAN/CSA-22.2 No.21-95
- (Quality System): ISO9001:2008
- (Testing): SGS/TUV
- (Environmental): ROHS,REACH,PAHS
- (Environmental mark):
- (Patent): NYC
- (Country of Origin): Made in China
MODEL NEMA
Cord AWG
Cord Type
Electrical Rating Amps V
NEMA1-15P 1-15P 18AWG(0.823) SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW , SVT, SVTO, SVTOO, SPT-2, SPT-3, HPN, ST, STW, STO, STOW, STOO, STOOW 10A/125V 16AWG(1.31) SVT, SVTO, SVTOO, SPT-2, SPT-3, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW 13A/125V 16AWG(1.31) HPN 15A/125V 14AWG(2.08) SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW 15A/125V
