Europe Power Cords VDE certified E02-F
Certifications Approval and Compliances
Europe VDE KEMA OVE N S FI D CEBEC
Europe VDE KEMA OVE N S FI D CEBEC
Europe Power Cords VDE certified E02-F
Europe Power Cord, Type C, VDE, TUV, KEMA, OVE, N, S, FI, D, CEBEC certified 2 pins CEE 7/16 Plug
  • Samples date :
    1-7days,Free with freight collect
  • Delivery date :
    10-15 days
  • MOQ :
    6ft-3000pcs/4ft-5000pcs
  • Packing :
    Export cartons,pallets,Express box,User-Defined
  • Shipping :
    By Sea,By Air,By FedEx
  • Payment :
    Wire transfer
What is RoHS REACH PAHS of power cords

Inquiry
Message
Product Info
<< Back to European VDE Power Cords
Description

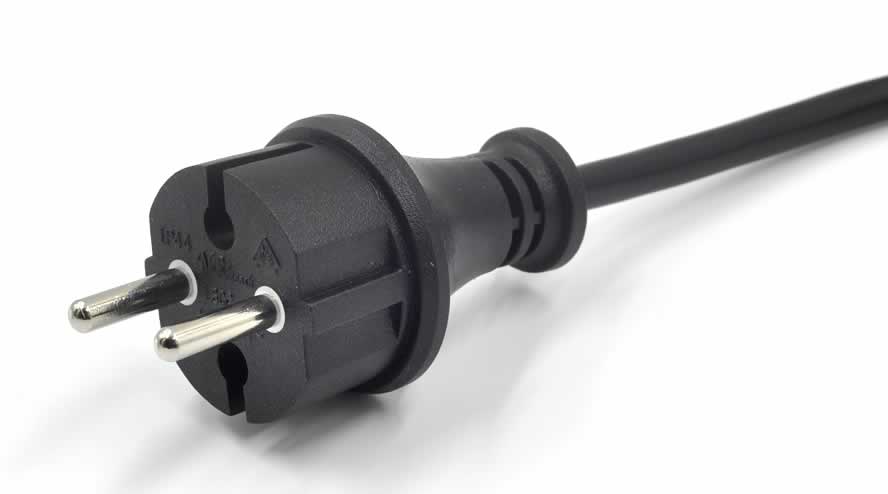

CEE7/7 CEE 7/7 Schuko German 3 Conductor IP44 waterproof plug power cord with VDE certification Rated up to 16A 250V Built to DIN EN 60320-1(VDE 0625-1):2008-05;EN 60320-1:2001+A1:2007 standards and designed for European outdoor power supply cord applications. All of our European AC power cords are fully made with ergonomic design and RoHS / REACH compliant as we are China premier power cable manufacturer


Features
The quality is good,Durable,Environmental protecti
Details

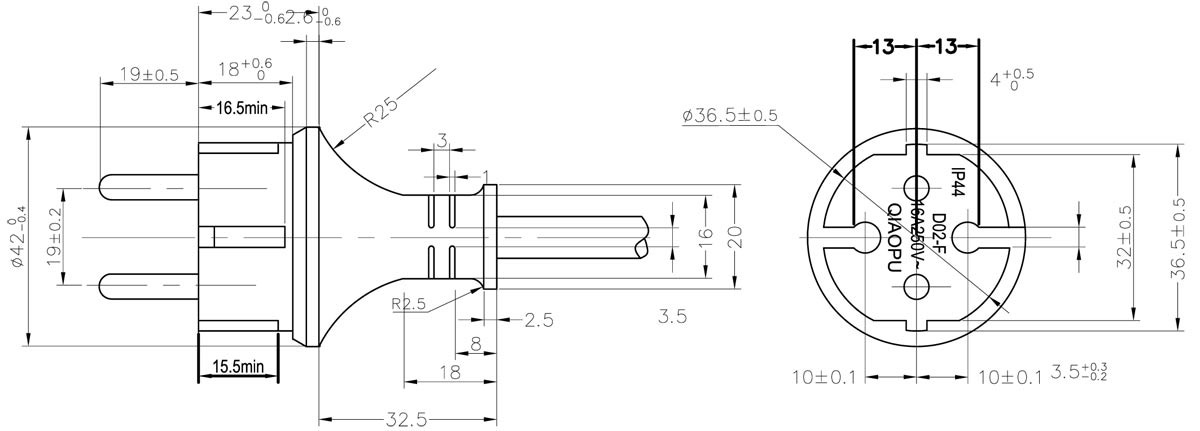

Europe Power Cords VDE certified E02-F Drawing (RoHS COMPLIANT)

Europe Power Cords VDE certified E02-F

E02-F/Europe VDE KEMA OVE N S FI D CEBEC/Europe CEE7/7 IP44 Plug (NINGBO NINGYANG)

End and connector

Europe Power Cords VDE certified E02-F End Drawing (RoHS COMPLIANT)

Europe Power Cords VDE certified E02-F

E02-F/Europe VDE KEMA OVE N S FI D CEBEC/Europe CEE7/7 IP44 Plug (NINGBO NINGYANG)

Europe Power Cords VDE certified E02-F
Specifications
  • (Model)： E02-F
  • (Voltage): 250V
  • (Amperage): 15A
  • (Temperature Rating): 60°C
  • (Weight): 20g
  • (Color): User-Defined
  • (Cable Length): User-Defined
Material
  • (Plug Models Desc): Type 2P-E
  • (Plug Material): Nickel Coated Brass & PBT
  • (Cable Conductor Structure): 3 Poles 3 Wires
  • (Cable Insulating Sheath Material): PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
  • (Cable Conductor Material): Oxygen free copper (OFCU)
Quality
  • (Approvals): Europe VDE KEMA OVE N S FI D CEBEC
  • (Standard): Europe CEE7/7 IP44 Plug
  • (Quality System): ISO9001:2008
  • (Testing): SGS/TUV
  • (Environmental): ROHS,REACH,PAHS
  • (Environmental mark): What is RoHS REACH PAHS of power cords
More and more
  • (Patent): NYC
  • (Country of Origin): Made in China
Available Cord / Cables Wire Styles

  • H03VVH2-F 2x0,5 mm² max.2m
    H03VVH2-F 2x0,75 mm²
    H05VVH2-F 2x0,75 mm² H05VVH2-F 2x1.0 mm²
    H03VV-F 2x0,5 mm² max.2m H03VV-F 2x0,75 mm²
    H05VV-F 2x0,75 mm² H05VV-F 2x1,0 mm² H05VV-F 2x1,5 mm²
    H05RR-F 2x0,75 mm² H05RR-F 2x1,0 mm² H05RR-F 2x1,5 mm²
    H05RN-F 2x0,75 mm² H05RN-F 2x1,0 mm²
    H07RN-F 2x1,0 mm² H07RN-F 2x1,5 mm²
    H03RT-H 2x0,75 mm² H03RT-H 2x1,0 mm²
    H05V2V2-F 2x0,75 mm² H05V2V2-F 2x1,0 mm H05V2V2-F 2x1,5 mm
    H05V2V2H2-F 2x0,75mm

Sea and air freight
Europe Power Cords VDE certified E02-F Sea and air freight
Free sample
Europe Power Cords VDE certified E02-F Free sample
PDF Support
Europe Power Cords VDE certified E02-F.PDF Support
