- Samples date :1-7days,Free with freight collect
- Delivery date :3000PCS12~15day
- MOQ :3000pcs/5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :100%TT
UL 2725 SHIELDED WIRE 屏蔽线
产品说明 额定温度:60°C，80°C 额定电压:30V 参考标准:UL758,UL1581 导体使用单支或绞合镀锡或裸铜 SR-PVC/PVC/PE绝缘，符合ROHS环保标准 镀锡或裸铜缠绕屏蔽 PVC护套，符合ROHS环保标准 通过ULVW-1及JQAF-Mark阻燃测试 使用标准绝缘厚度、易裁线、易剥皮 用于一般电子、电器设备内部连接线 | PRODUCT DESCRIPTION . Rated temperature:60°C, 80°C . Rated voltage:30V . Reference standard:UL758,UL1581 . Solid or stranded ,tinned or bare copper conductor . SR-PVC/PVC/PE insulation, comply with ROHS environmental standard . Tinned or bare copper wire spiral shield . PVCjacket, comply with ROHS environmental standard . Passes UL VW-1 and JQA F-Mark flame test . Uniform insulation thickness to ensure easy stripping and cutting . For general purpose internal wiring of appliance |

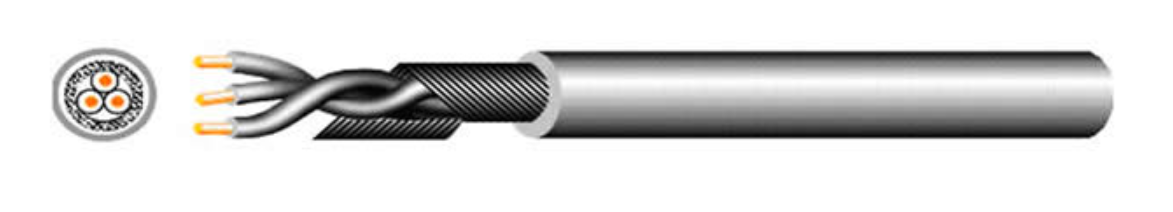

Wire UL cUL UL 2725 SHIELDED WIRE End Drawing (RoHS COMPLIANT)
AWM2725//UL758 UL1581 (NINGBO NINGYANG)
- Model : AWM2725
- Voltage : 30V
- Amperage : 10A
- Temperature Rating : 60℃ 80℃
- Weight : 36g
- Color : Black is standard but any color available
- Cable Length : 100M/Reel、200M/Reel
- Models Desc : Double sheathed/2-10Conductor
- Conductor Structure : 24AWG
- Insulating Sheath Material : PVC, Rubber, Halogen-Free, Textile braid
- Conductor Material : Oxygen free copper (OFCU)
- Approvals : UL
- Standard : UL758 UL1581
- Antiflaming : PVC, Rubber, Halogen-Free, Textile braid
- Quality System : ISO9001:2008
- Testing : SGS/TUV
- Environmental : ROHS,REACH,PAHS
- Environmental mark :
- Patent : NY
- Country of Origin : Ningbo China
- AC Power cords
- DC Power cords
- Power Extension cords
- Cables
- Cord sets
- Wiring Harness
- Terminal connector
- Transformer and Parts
